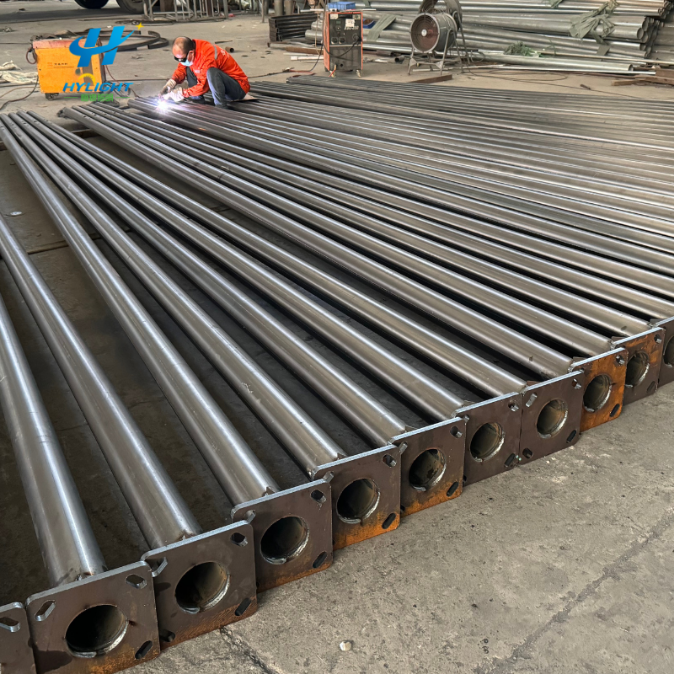

Q235B low-carbon steel plate, formed by CNC bending and automatic submerged-arc welding. Dimensions and arm configuration are selected for the project.

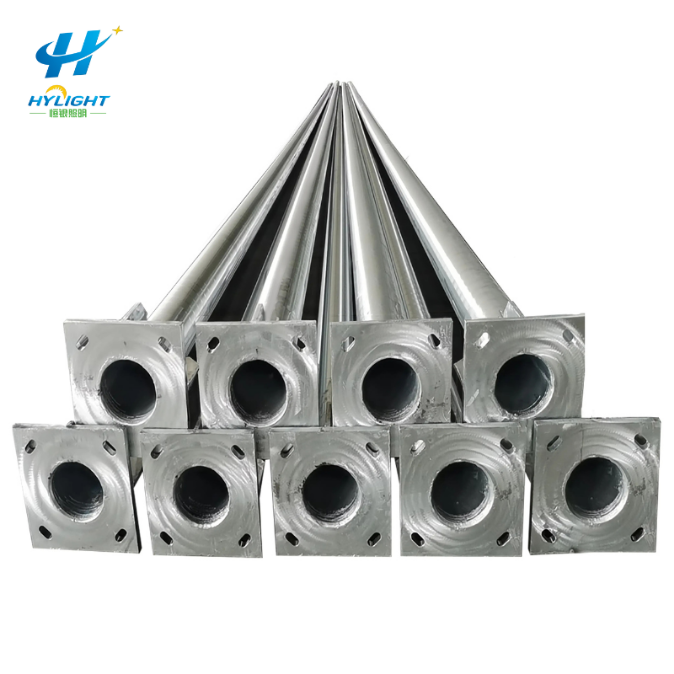

Hot-dip galvanizing with optional powder coating. Coating thickness, acceptance standards and corrosion protection requirements should be confirmed in the project specification.
The source specification lists 120–160 km/h, subject to local standards. Wall thickness and base plate dimensions depend on pole height, arm length and the project wind-load calculation.
Lamp powers are reference values; selection depends on project requirements and local standards.
| Pole Height | Typical Application | Recommended Arm | Lamp Power (reference) | Road Width |
|---|---|---|---|---|
| 3–4 m | Walkways, gardens, residential pathways | Single short arm | 20–40 W | ≤ 5 m |
| 5–6 m | Residential roads, parking lots, sidewalks | Single / double arm | 40–80 W | 6–10 m |
| 7–8 m | Urban secondary roads, community roads | Single / double arm | 60–120 W | 10–15 m |
| 9–10 m | Main urban roads, arterial streets | Double arm | 100–200 W | 15–20 m |
| 11–12 m | Highways, expressways, large intersections | Double / multi-arm | 150–300 W | 20–30 m |
| 13–15 m | Overpasses, plazas, ports, industrial areas | High mast / multi-arm | 200–400 W | ≥ 30 m |
The MOQ depends on models. Stock standard items accept small orders; customized products require a higher MOQ. Please contact us for detailed information.
Yes. We support customized appearance, power, battery capacity, color, light pole size and packaging according to your project requirements.
The standard warranty period is 3–5 years, varying by different product models. Please consult our sales team for detailed warranty terms of specific items.
Yes, we ship to all countries globally. We work with reliable sea, air and express freight forwarders. We can deliver goods to your nominated port or address.
Yes. We supply English version installation manuals for all models. Electronic PDF files are provided free of charge; printed hard copies can be arranged upon request.
