Street Light Poles

Product introduction

Conical Steel Pole

View legacy product catalog and model specifications

Specifications apply only to the named product, not every product in this category. Gallery images illustrate the category.

Conical Steel Pole
Material	Q235B low-carbon steel (customizable)

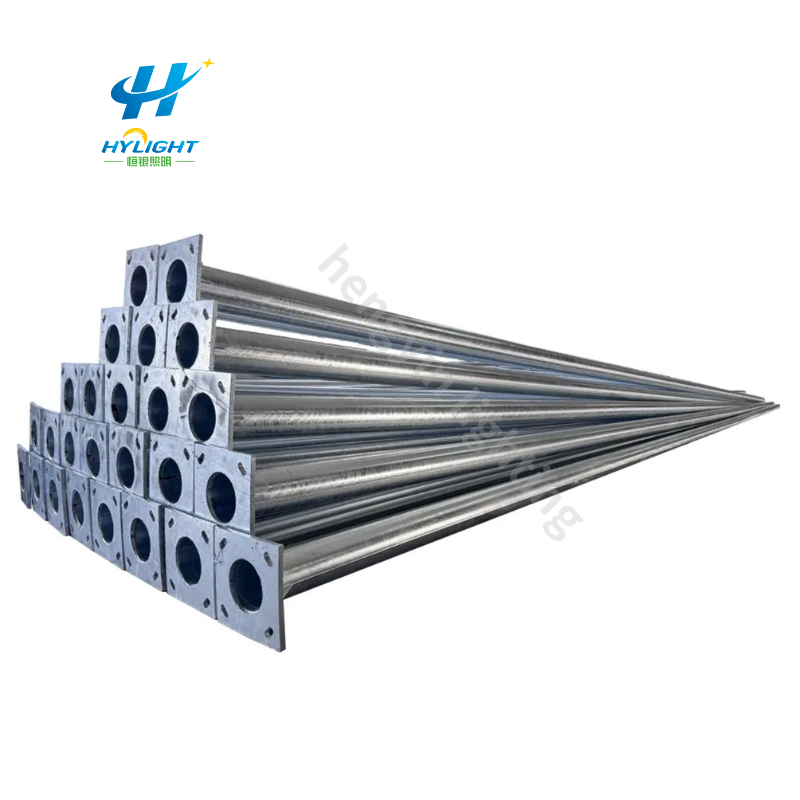

Technology	Hot-dip galvanized
Height	Customizable
Wall Thickness	2.5–6 mm
Wind Load Resistance	120–160 km/h (per local standard)

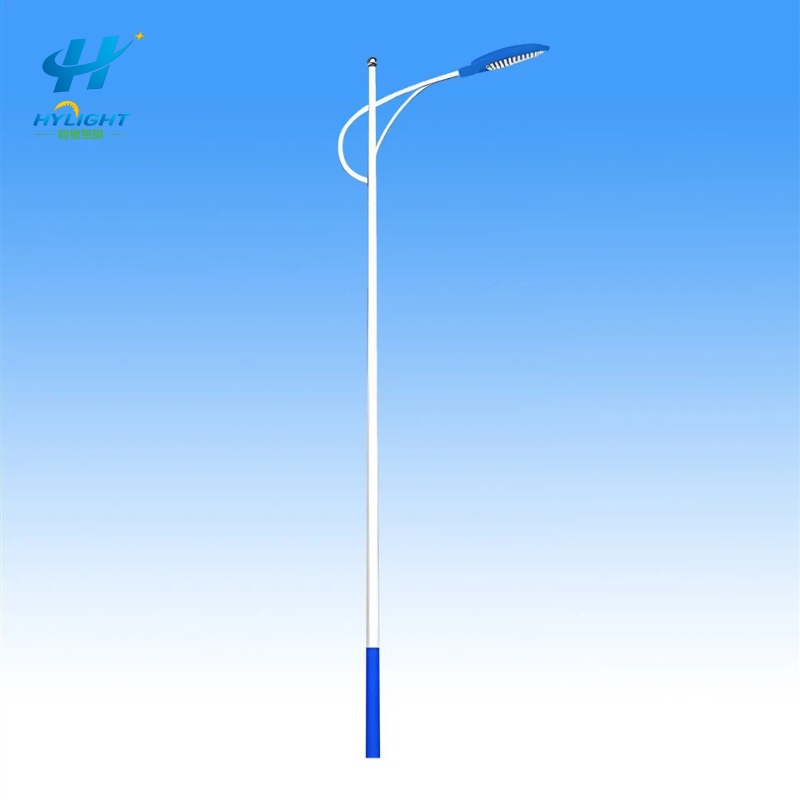

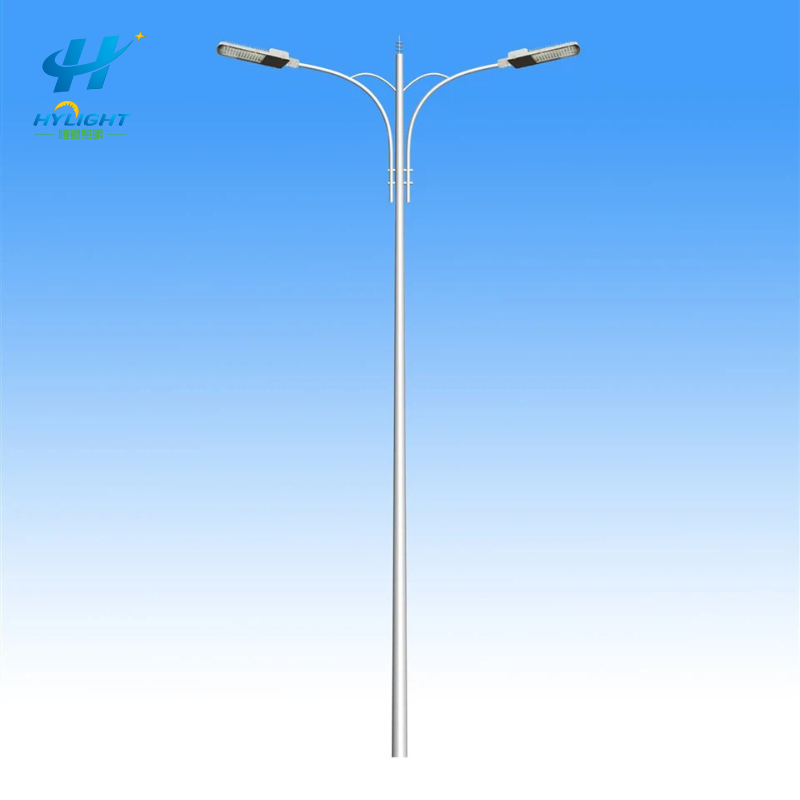

Arm Configuration	Single arm / Double arm / Customized
Certificate	ISO9001 / CE / SGS

Source reference: Customer PDF, pages 4–5

Lamp powers are reference values; selection depends on project requirements and local standards.

Conical Steel Pole — Height Options
Pole Height	Typical Application	Recommended Arm	Lamp Power (reference)	Road Width
3–4 m	Walkways, gardens, residential pathways	Single short arm	20–40 W	≤ 5 m

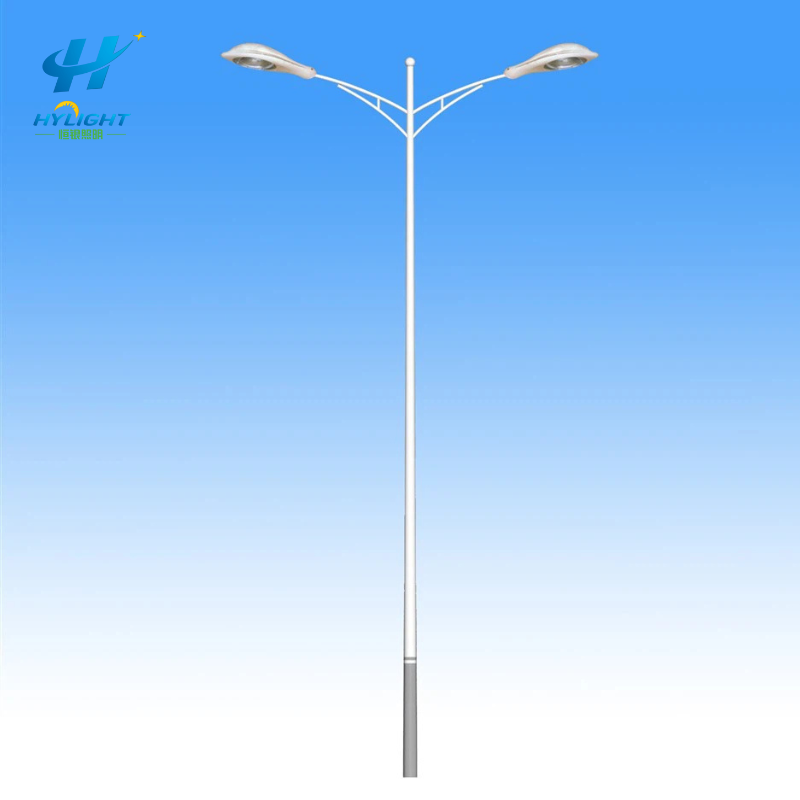

5–6 m	Residential roads, parking lots, sidewalks	Single / double arm	40–80 W	6–10 m
7–8 m	Urban secondary roads, community roads	Single / double arm	60–120 W	10–15 m
9–10 m	Main urban roads, arterial streets	Double arm	100–200 W	15–20 m
11–12 m	Highways, expressways, large intersections	Double / multi-arm	150–300 W	20–30 m
13–15 m	Overpasses, plazas, ports, industrial areas	High mast / multi-arm	200–400 W	≥ 30 m
