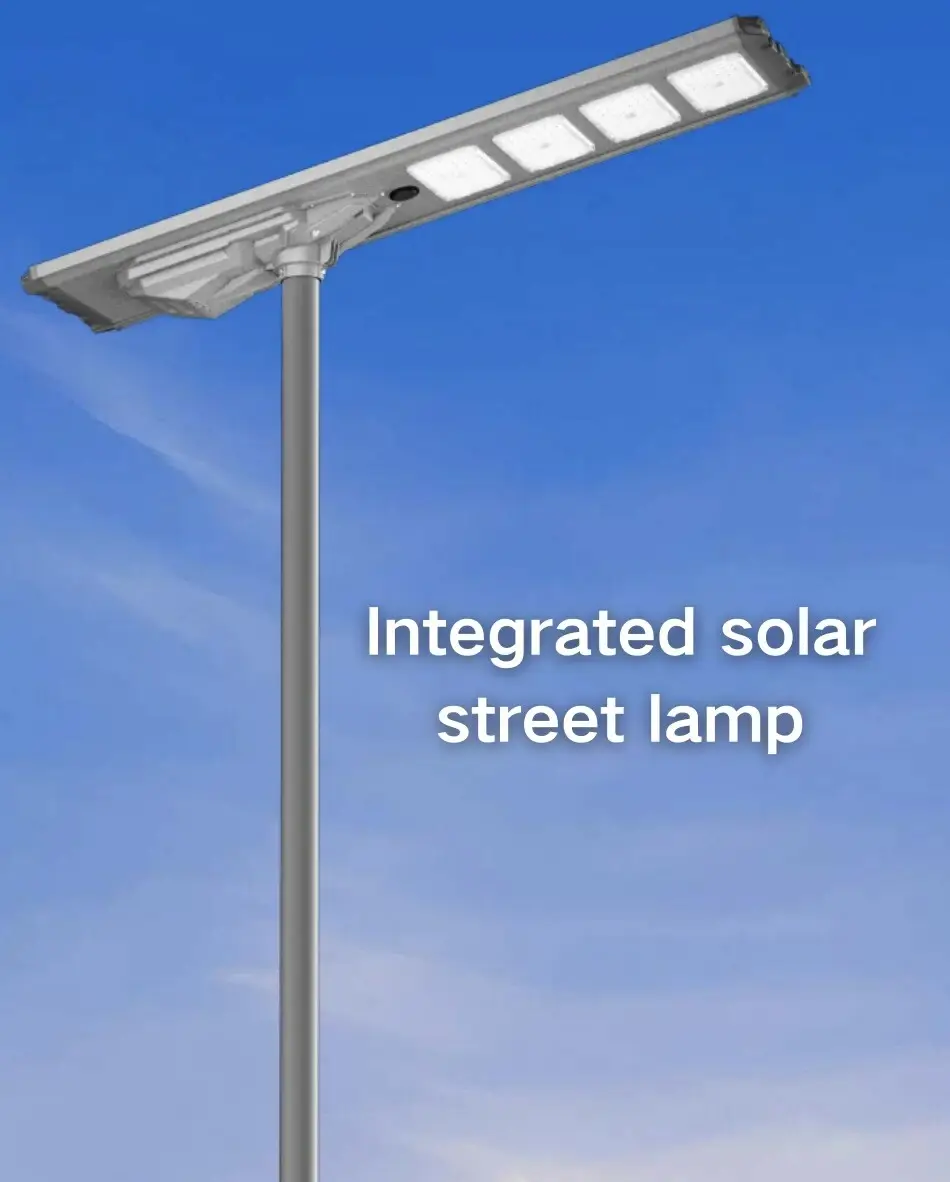

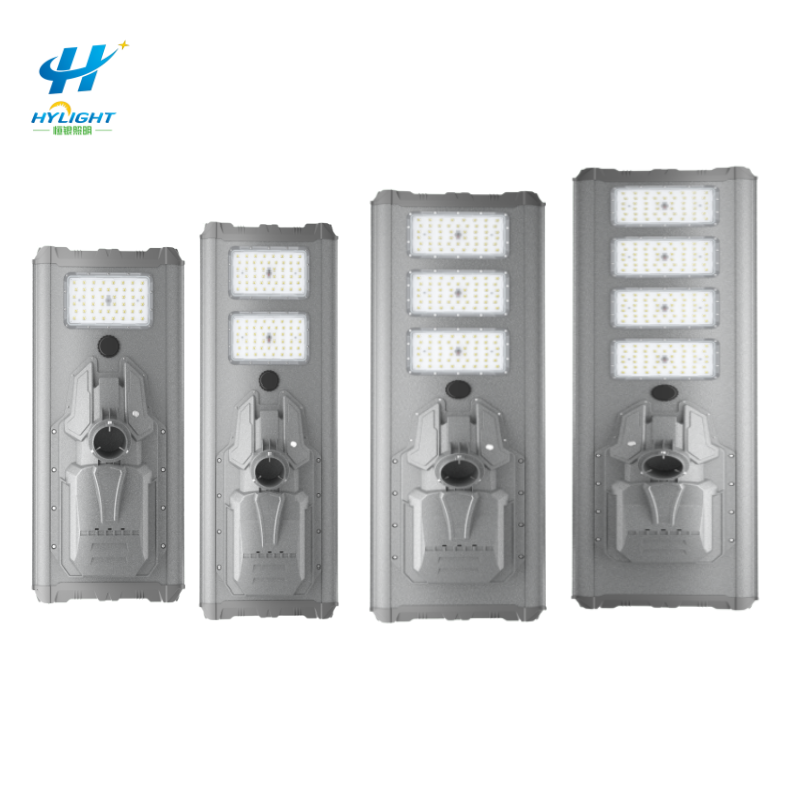

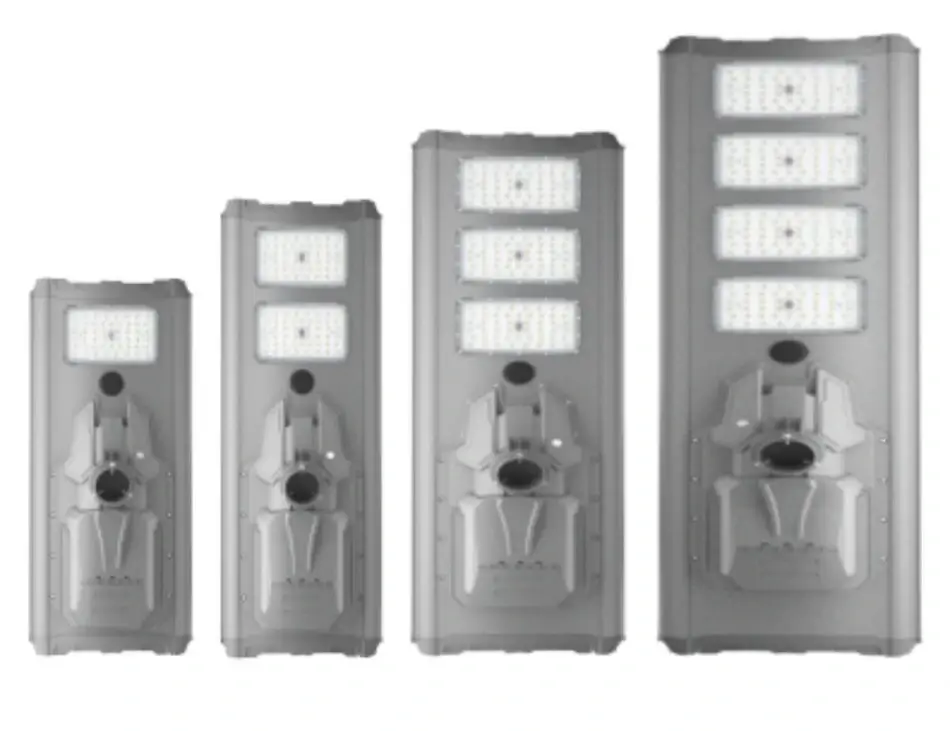

Integrated Solar Street Light — HY-LF / HY-LY Series

Catalog reference: 1298910

Product overview

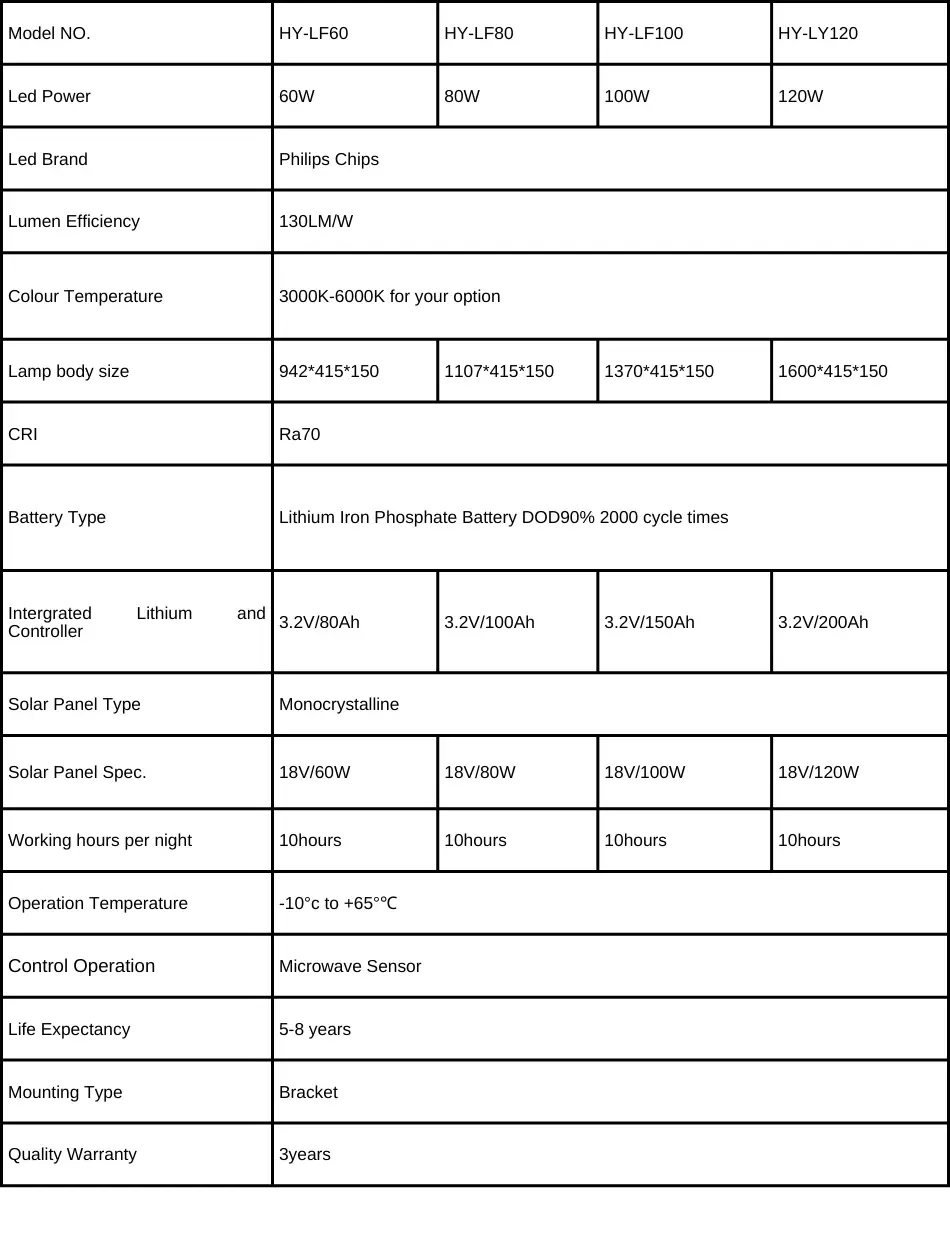

Technical Specifications
Model / LED power	HY-LF60 — 60 W; HY-LF80 — 80 W; HY-LF100 — 100 W; HY-LY120 — 120 W
LED brand	Philips Chips
Luminous efficiency	130 lm/W
Colour temperature	3000–6000 K, optional
CRI	Ra70
Battery type	Lithium iron phosphate, DOD90%, 2000 cycles
Battery configuration	HY-LF60 — 3.2V/80Ah; HY-LF80 — 3.2V/100Ah; HY-LF100 — 3.2V/150Ah; HY-LY120 — 3.2V/200Ah
Solar panel	Monocrystalline; 18V/60W, 18V/80W, 18V/100W, 18V/120W respectively
Working hours per night	10 hours
Operation temperature	−10°C to +65°C
Control	Microwave sensor
Life expectancy	5–8 years
Mounting	Bracket
Warranty	3 years

Enquire about this product

Product Details

Application Areas

Municipal Road

Highway Lighting

Commercial Area

Residential Area

Industrial Park

Parks & Landscapes

Project Case

FAQs

What is your minimum order quantity?

The MOQ depends on models. Stock standard items accept small orders; customized products require a higher MOQ. Please contact us for detailed information.

Can I customize the design?

Yes. We support customized appearance, power, battery capacity, color, light pole size and packaging according to your project requirements.

How long is the warranty?

The standard warranty period is 3–5 years, varying by different product models. Please consult our sales team for detailed warranty terms of specific items.

Do you ship worldwide?

Yes, we ship to all countries globally. We work with reliable sea, air and express freight forwarders. We can deliver goods to your nominated port or address.

Do you provide installation manuals?

Yes. We supply English version installation manuals for all models. Electronic PDF files are provided free of charge; printed hard copies can be arranged upon request.
