ONE COMPATIBLE MULTIPLE!
APPLICATION

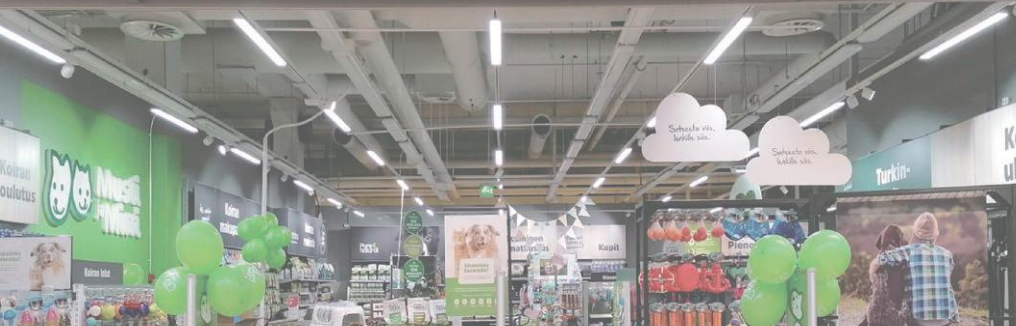

Shop | Office | Gallery | Corridor | Exhibition Hall
FEATURES
Up to 170 LM/W
CCT Optional
30° Rotatable Le or Right
Power switchable
Innovative optics
Own tooling
L1 L2 L3 Phase switch
Flicker Free
Osram / Philips / Tridonic driver
DIMENSION (mm)
BEAM ANGLE
60°
90°
25° Double
120°
PRODUCT DATASHEET
| Model NO. | Watt | lm | lm/W | Beam Angle | Function | Length(mm) |
| P025H1-60-B1 | 58W-50W-42W-33W by switch |
Max 10,000 | 170 | 90°/ 60°/ DS25°/ 120° | ON/OFF | 1438 |
| P024H1-48-B1 | 48W-40W-34W-37W by switch |
Max 8,000 | 170 | 90°/ 60°/ DS25°/ 120° | ON/OFF | 1152 |
| P022H1-24-B1 | 24W-20W-17W-14W | 3,800 | 160 | 90°/ 60°/ DS25° | ON/OFF | 578 |
| Model NO. | Watt | lm | lm/W | Beam Angle | Function | Length(mm) |
| P025H1-60-B4 | 60W-50W-42W-33W by switch |
Max 10,000 | 170 | 90°/ 60°/ DS25°/ 120° | DALI (1-100% DIM) |
1438 |
| P024H1-48-B4 | 48W-40W-34W-37W by switch |
Max 8,000 | 170 | 90°/ 60°/ DS25°/ 120° | DALI (1-100% DIM) |
1152 |
| P022H1-24-B4 | 24W-20W-17W-14W | 3,800 | 160 | 90°/ 60°/ DS25° | DALI (1-100% DIM) |
578 |
