IP54 HIGH PROTECTION
For areas with high safety requirements or rough conditions,
compliance with DIN 18032-3 and DIN 57710-13 for indoor stadium.
APPLICATION

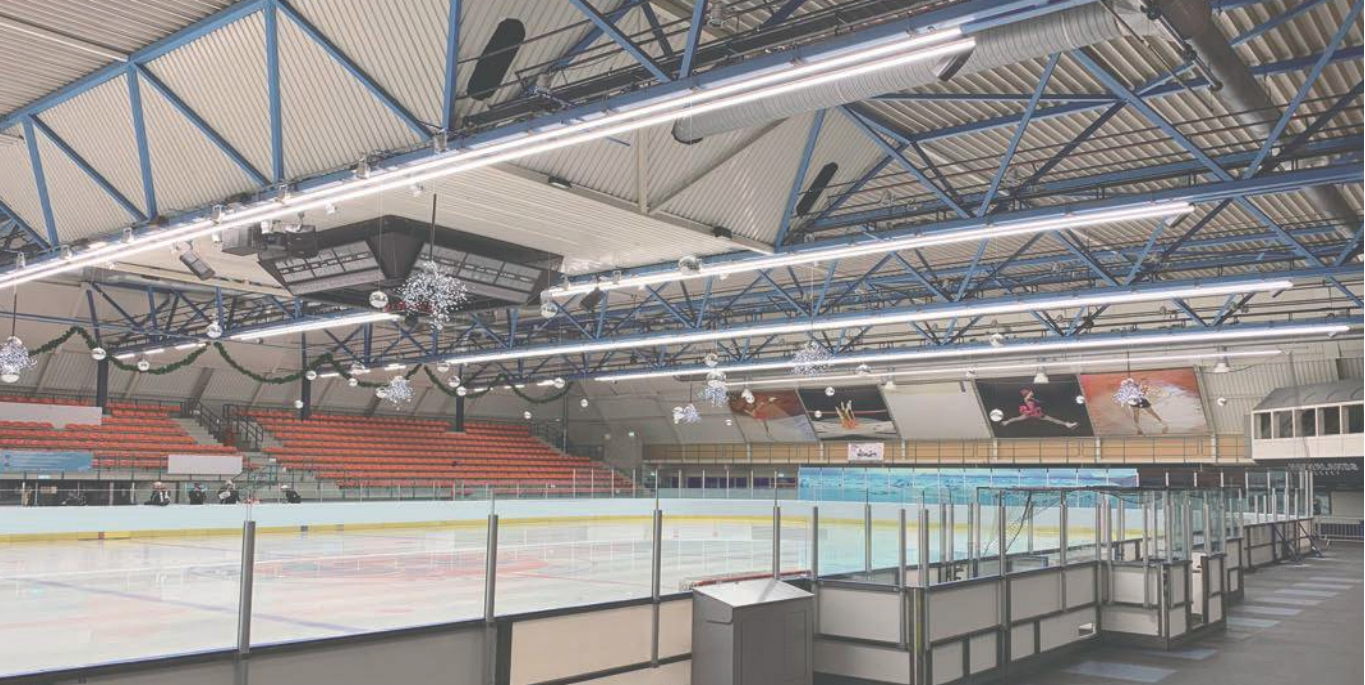

Car Washing Room | Machine Factory | Food Factory | Warehouse | Indoor Stadium
FEATURES
Up to 175 LM/W
Emergency
Optional halogen-free wire
Power switchable
Innovative optics
Own tooling
Sensor
Flicker Free
Seamless Connection
Osram / Philips / Tridonic driver

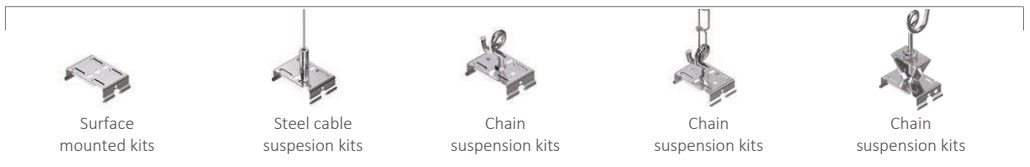

FIXING ACCESSORIES
CONNECTION ACCESSORIES

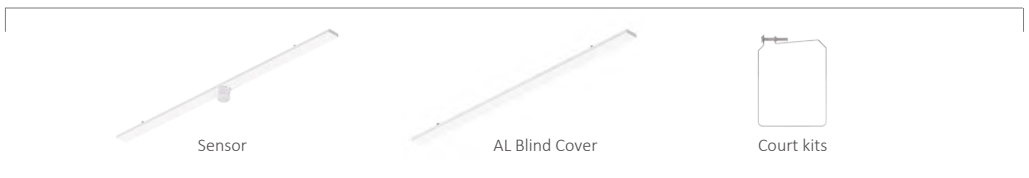

FUNCTIONAL ACCESSORIES
INSTALLATION

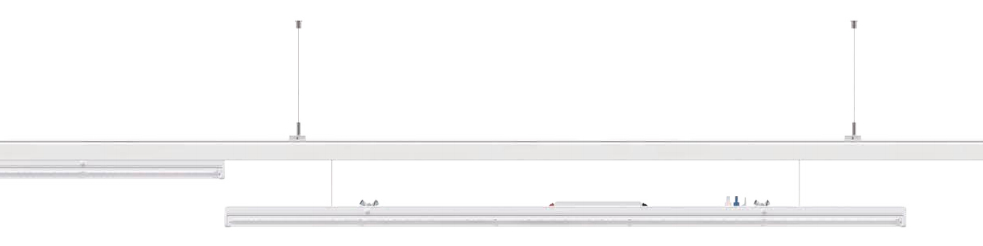

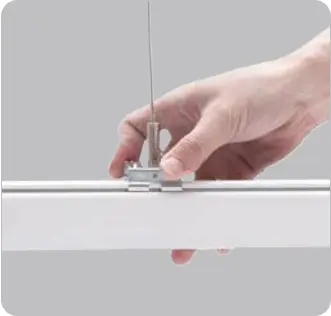

A variety of suspension
brackets can be clicked
into the trunking groove

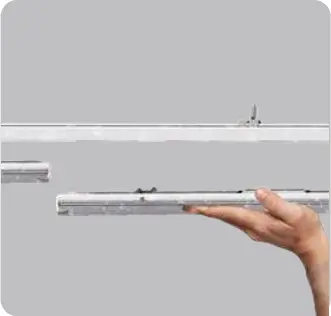

Connect trunking sections

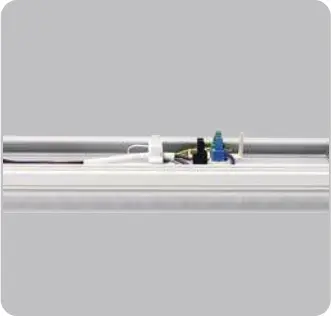

Select electrical phase at
the unit

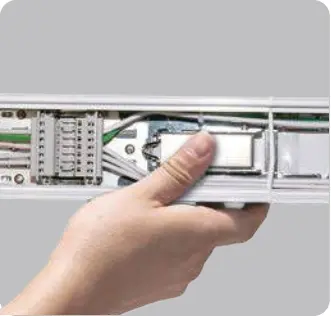

Click lighting unit into
trunking rail

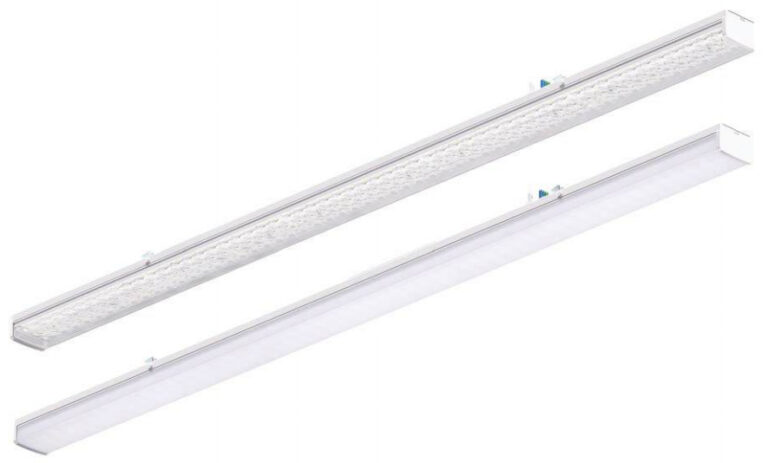

Led Module

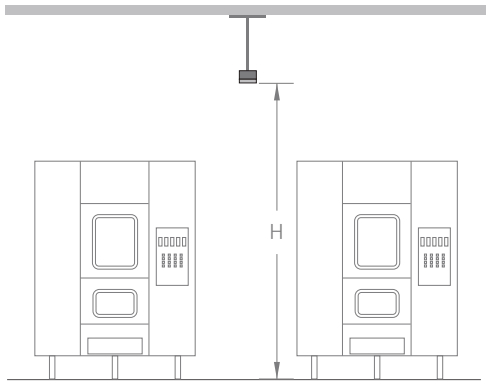

The Recommended Installation Heigth
| Beam angle | H |
| DS 25° | <3m |
| 30° | 6-12m |
| 60° | 5-10m |
| 90° (WD) | 3-5m |
| 120° (PMMA) | 2-5m |
| 120° (PC) | 2-4m |

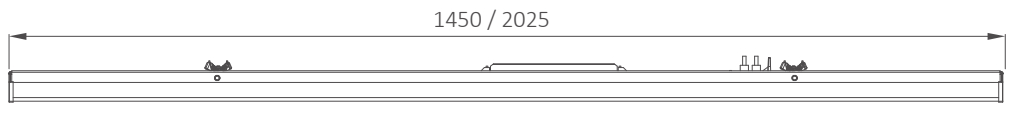

DIMENSION (mm)
BEAM ANGLE
30°
60°
90°
25° Double
Asymmetric-l
120°
PRODUCT DATASHEET
| Model NO. | Watt | lm | lm/W | Function | Length(mm) |
| RIP5P-60-P2 | 58W-50W-42W-32W by switch |
10,000 | 170 | ON/OFF | 1450 |
| RIP5P-75-P2 | 75W-67W-53W-46W by Switch |
12,500 | 168 | ON/OFF | 1450 |
| RIP5P-75-PC | 75W-67W-58W-51W-43W- 37W-28W-22W by Switch |
12,500 | 168 | ON/OFF | 1450 |
| RIP5P-60-P/B4 | Max 60W | 10,000 | 170 | DALI2 (1-100% DIM) |
1450 |
| RIP5P-75-P/B4 | Max 75W | 12,500 | 168 | DALI2 (1-100% DIM) |
1450 |
| RIP5P-70-BB | Max70W by Switch | 11,500 | 170 | 0-10V | 1450 |
| Model NO. | Watt | lm | lm/W | Function | Length(mm) |
| RIP7P-64-P2 | 64W-55W-46W-36W by switch |
11,200 | 175 | ON/OFF | 2025 |
| RIP7P-73-PC | 73W-66W-58W-52W-42W- 35W-27W-22W by switch |
12,800 | 175 | ON/OFF | 2025 |
| RIP7P-88-P2 | 88W-72W-62W-54W by switch |
15,000 | 170 | ON/OFF | 2025 |
| RIP7P-129-P2 | 129W-109W-90W-72W by Switch |
21,500 | 168 | ON/OFF | 2025 |
| RIP7P-60-P4 | Max 60W | 10,500 | 175 | DALI (1-100% DIM) |
2025 |
| RIP7P-90-P4 | Max 88W | 15,000 | 170 | DALI (1-100% DIM) |
2025 |
| RIP7P-129-P4 | Max 129W | 21,500 | 170 | DALI (1-100% DIM) |
2025 |

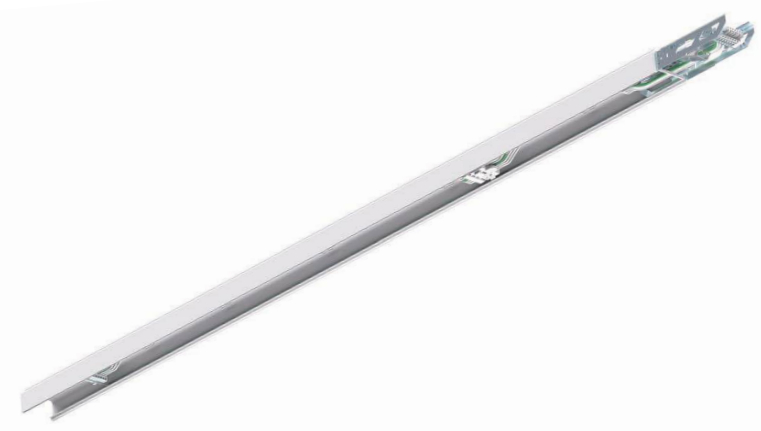

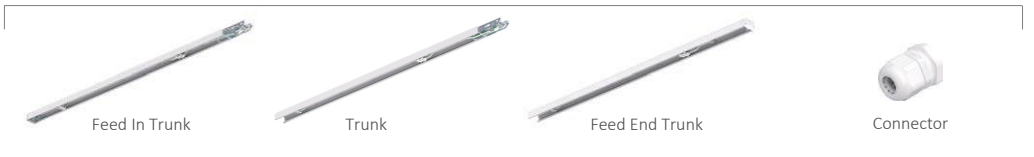

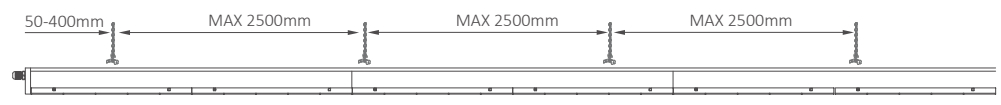

Trunking
Installation length

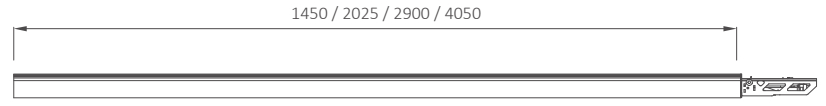

DIMENSION (mm)
PRODUCT DATASHEET
| Model NO. | Wiring | Description | Length(mm) |
| TKB53-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 1450 |
| TKB53-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 1450 |
| TKB53-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 1450 |
| TKB53-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 1450 |
| Model NO. | Wiring | Description | Length(mm) |
| TKB73-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 2025 |
| TKB73-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 2025 |
| TKB73-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 2025 |
| TKB73-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 2025 |
| Model NO. | Wiring | Description | Length(mm) |
| TKB93-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 2900 |
| TKB93-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 2900 |
| TKB93-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 2900 |
| TKB93-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 2900 |
| Model NO. | Wiring | Description | Length(mm) |
| TKB143-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 4050 |
| TKB143-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 4050 |
| TKB143-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 4050 |
| TKB143-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 4050 |
