APPLICATION
Shop | Warehouse | Train station | Exhibition hall | Factory | Sport Ball | Exhibi tion Hall | Hospital | Airport
FEATURES
Up to 180 LM/W
Innovative optics
Sensor
Power switchable
Flicker Free
Own tooling
Osram / Philips driver
Bluetooth

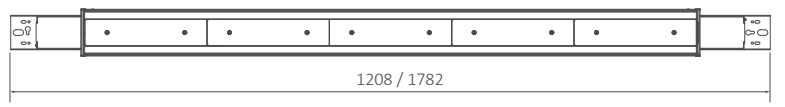

DIMENSION (mm)
BEAM ANGLE
60°
90°
120°
25° Double
PRODUCT DATASHEET
| Model NO. | Watt | lm | lm/W | Beam Angle | Function | Length(mm) |
|---|---|---|---|---|---|---|
| L213A-60 | 60W | 10,200 | 170 | 90°/ 60°/ DS25°/ 120° | DALI2 | 1208 |
| L213A-75 | 75W | 12,300 | 165 | 90°/ 60°/ DS25°/ 120° | DALI2 | |
| L215P-73 | 73W | 13,000 | 182 | 90°/ 60°/ DS25°/ 120° | ON/OFF | 1782 |
| L215A-80 | 80W | 14,000 | 180 | 90°/ 60°/ DS25°/ 120° | ON/OFF | |
| L215A-96 | 96-85-76-66W by Switch |
17,000 | 178 | 90°/ 60°/ DS25°/ 120° | ON/OFF | |
| L215A-136 | 136-115-96-76W by Switch |
22,800 | 168 | 90°/ 60°/ DS25°/ 120° | ON/OFF | |
| L215A-80 | 80W | 14,000 | 180 | 90°/ 60°/ DS25°/ 120° | DALI2 | |
| L215A-90 | 90W | 16,000 | 178 | 90°/ 60°/ DS25°/ 120° | DALI2 | |
| L215A-100 | 100W | 17,500 | 175 | 90°/ 60°/ DS25°/ 120° | DALI2 | |
| L215A-136 | 136-115-96-76W by Switch |
22,800 | 168 | 90°/ 60°/ DS25°/ 120° | DALI2 |
