TRI-COLOR INTEGRATED

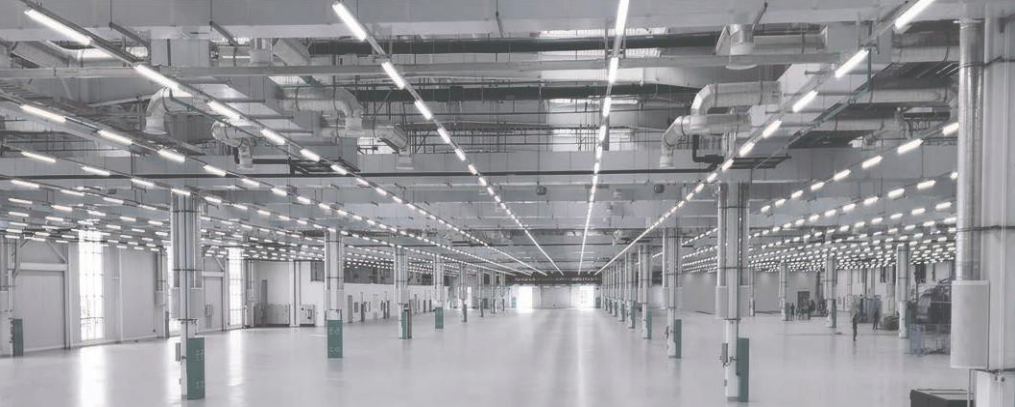

APPLICATION
Shop | Office | Gallery | Corridor | Exhibition Hall
FEATURES
Up to 160 LM/W
Sensor
Flicker Free

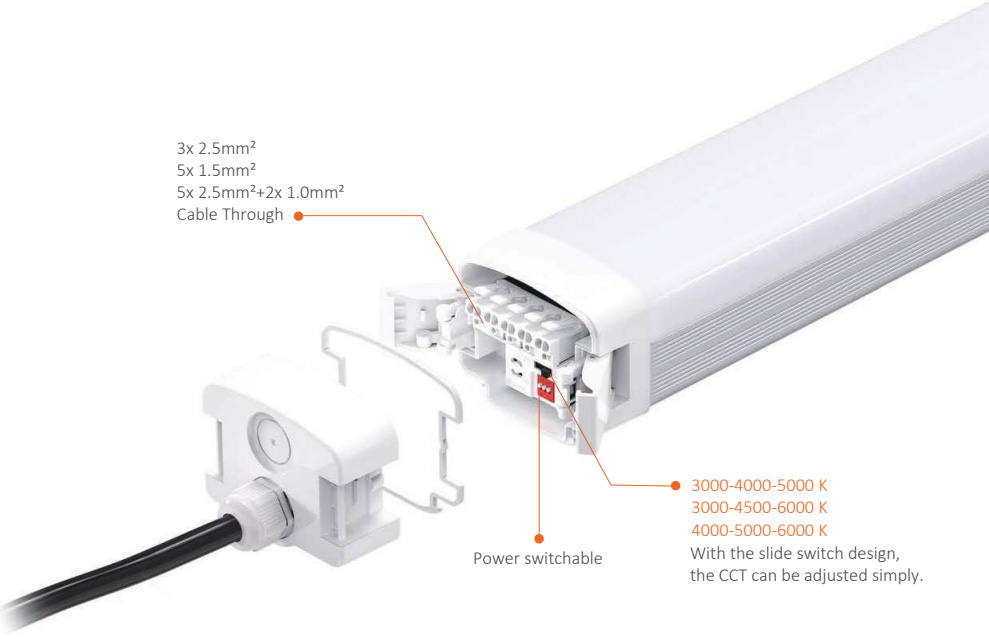

Power switchable
Emergency
Own tooling
CCT switchable
Osram / Philips / Tridonic driver

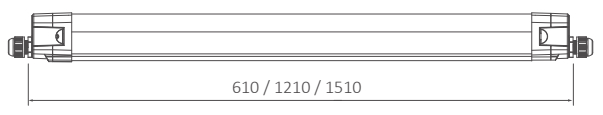

DIMENSION (mm)
BEAM ANGLE
120°
PRODUCT DATASHEET
| Model NO. | Watt | lm | lm/W | Color | Beam Angle | Function | Length(mm) |
|---|---|---|---|---|---|---|---|
| T012H-22 | 22W | 2,800 | 130 | Single Color Tri-Color |
120°(FF) | ON/OFF DALI2 |
610 |
| T014S-40 | 40W | 5,800 | 145 | Single Color | 120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1210 |
| T014S-50 | 50W | 7,200 | 145 | Single Color Tri-Color |
|||
| T014S-50-BC | 50-42-36-30W by switch |
7,200 | 145 | ||||
| T015S-60 | 60W | 8,700 | 145 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1510 |
| T015S-60-BC | 60-50-42-32W by switch |
8,700 | 145 | ||||
| T015S-75 | 75W | 10,800 | 145 | Single Color | 120°(FF) | ON/OFF EM 3H Self DALI2 |
1510 |
| Model NO. | Watt | lm | lm/W | Color | Beam Angle | Function | Length(mm) |
|---|---|---|---|---|---|---|---|
| T012S-22 | 22W | 3,000 | 140 | Single Color Tri-Color |
120°(FF) | ON/OFF DALI2 |
610 |
| T014H-40 | 40W | 6,200 | 155 | Single Color | 120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1210 |
| T014H-50 | 50W | 7,700 | 155 | Single Color Tri-Color |
120°(FF) | ||
| T014H-50-BC | 50-42-36-30W by switch |
7,700 | 155 | ||||
| T015H-45 | 45-38-32-26W by switch |
7,200 | 160 | Single Color | 120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1510 |
| T015H-60 | 60W | 9,500 | 160 | Single Color Tri-Color |
120°(FF) | ||
| T015H-60-BC | 60-50-42-32W by switch |
9,500 | 160 | ||||
| T015S-75 | 75W | 11,500 | 155 | Single Color | 120°(FF) | ON/OFF EM 3H Self DALI2 |
1510 |
