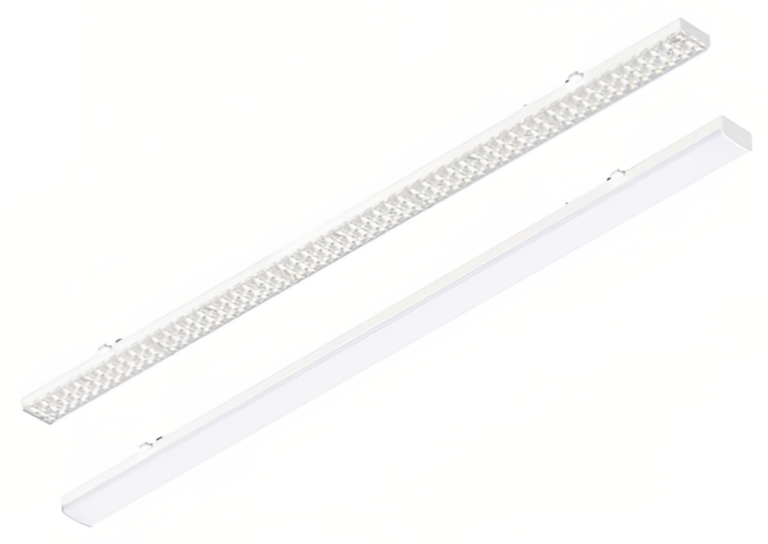

Led Module

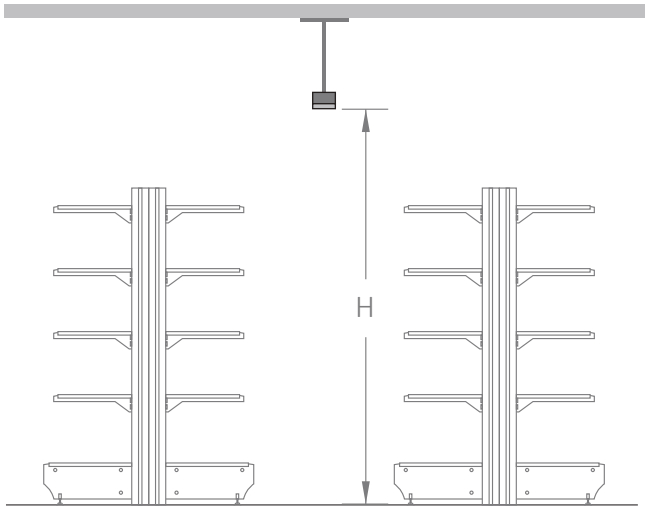

The Recommended Installation Heigth
| Beam angle | H |
| DS 25° | <3m |
| 30° | 6-12m |
| 60° | 5-10m |
| 90° (WD) | 3-5m |
| 120° (PMMA) | 2-5m |
| 120° (PC) | 2-4m |

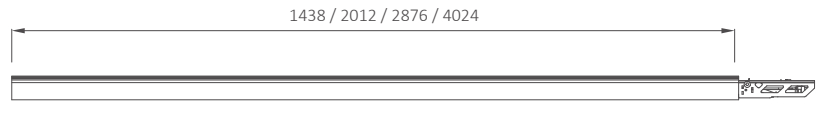

DIMENSION (mm)
BEAM ANGLE
30°
60°
90°
25° Double
Asymmetric-l
120°
PRODUCT DATASHEET
| Model NO. | Watt | lm | lm/W | Function | Length(mm) |
| RSL5P-60-P2 | 58W-50W-42W-32W by switch |
10,500 | 185 | ON/OFF | 1438 |
| RSL5P-75-P2 | 75W-67W-53W-46W by switch |
13,000 | 175 | ON/OFF | 1438 |
| RSL5P-75-PC | 75W-67W-58W-51W-43W- 37W-28W-22W by Switch |
13,000 | 175 | ON/OFF | 1438 |
| RSL5P-60-P/B4 | Max 60W | 10,500 | 185 | DALI2 (1-100% DIM) |
1438 |
| RSL5P-75-P/B4 | Max 75W | 13,000 | 175 | DALI2 (1-100% DIM) |
1438 |
| RSL5P-70-BB | Max70W by Switch | 12,000 | 175 | 0-10V | 1438 |
| Model NO. | Watt | lm | lm/W | Function | Length(mm) |
| RSL7P-64-P2 | 64W-55W-46W-36W by switch |
11,500 | 185 | ON/OFF | 2012 |
| RSL7P-73-PC | 73W-66W-58W-52W-42W- 35W-27W-22W by switch |
13,500 | 185 | ON/OFF | 2012 |
| RSL7P-88-P2 | 88W-72W-62W-54W by switch |
15,500 | 180 | ON/OFF | 2012 |
| RSL7P-129-P2 | 129W-109W-90W-72W by Switch |
22,500 | 175 | ON/OFF | 2012 |
| RSL7P-60-P4 | Max 60W | 11,000 | 185 | DALI (1-100% DIM) |
2012 |
| RSL7P-90-P4 | Max 88W | 16,000 | 180 | DALI (1-100% DIM) |
2012 |
| RSL7P-129-P4 | Max 129W | 22,500 | 175 | DALI (1-100% DIM) |
2012 |

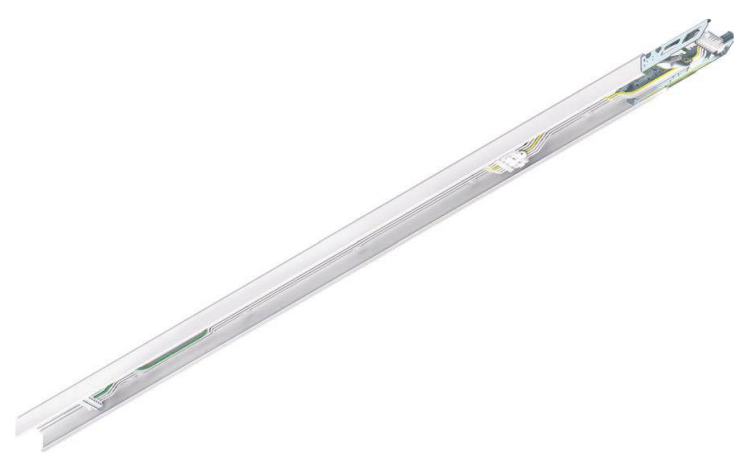

Trunking

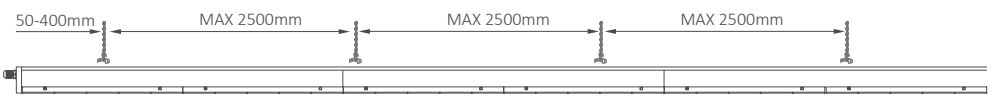

Installation length

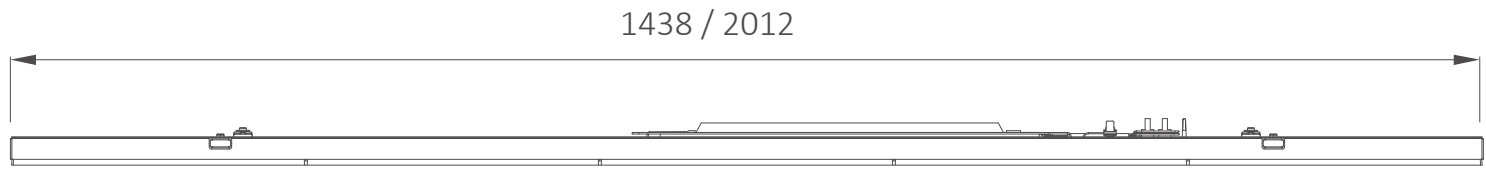

DIMENSION (mm)
PRODUCT DATASHEET
| Model NO. | Wiring | Description | Length(mm) |
| TKA53-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 1438 |
| TKA53-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 1438 |
| TKA53-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 1438 |
| TKA53-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 1438 |
| Model NO. | Wiring | Description | Length(mm) |
| TKA73-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 2012 |
| TKA73-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 2012 |
| TKA73-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 2012 |
| TKA73-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 2012 |
| Model NO. | Wiring | Description | Length(mm) |
| TKA93-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 2876 |
| TKA93-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 2876 |
| TKA93-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 2876 |
| TKA93-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 2876 |
| Model NO. | Wiring | Description | Length(mm) |
| TKA133-05W-00 | 5x 2.5 mm² | L1, L2, L3, N. E | 4024 |
| TKA133-07W-00 | 7x 2.5 mm² | L1, L2, L3, N, E+, D+, D- | 4024 |
| TKA133-26W-00 | 6×2.5+2×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +2×1.5 mm² D+, D- | 4024 |
| TKA133-66W-00 | 6×2.5+6×1.5 mm² | 6×2.5 mm² L1, L2, L3, N, E, CHR, +6×1.5 mm² D+, D-, EL1, EL2, EN1, EN2 | 4024 |
