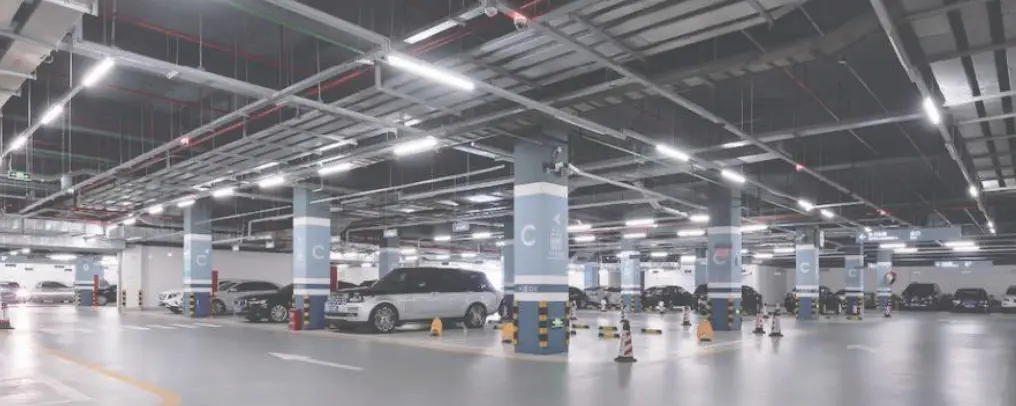

APPLICATION
Shop | Office | Gallery | Corridor | Exhibition Hall

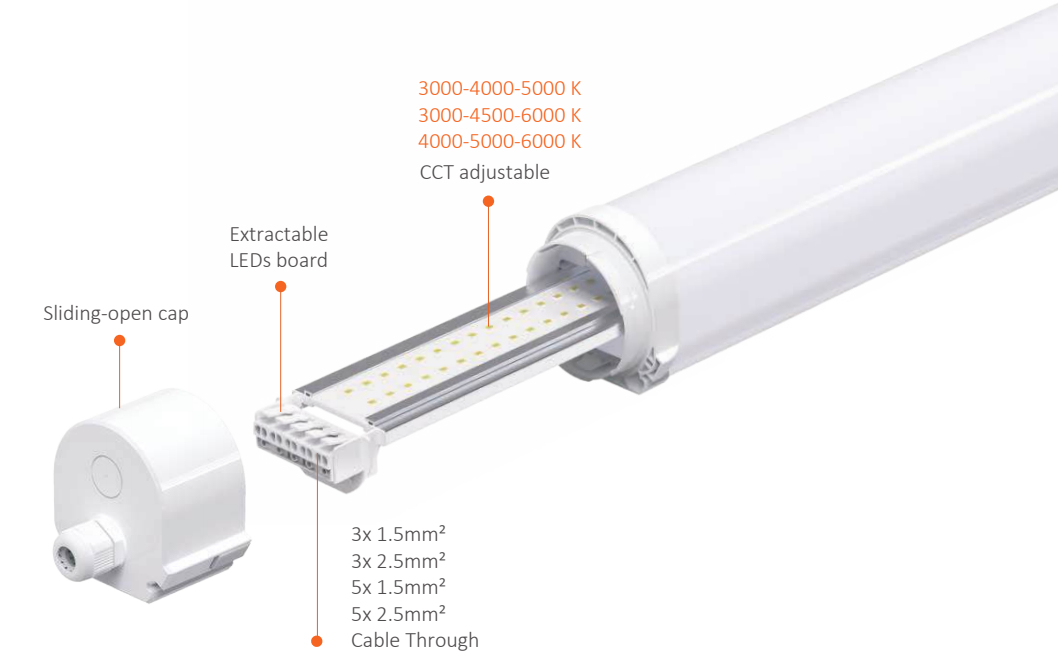

FEATURES
Up to 160 LM/W
Sensor
Full PC Housing
Power switchable
Emergency
Easy to Install
Osram / Philips / Tridonic driver

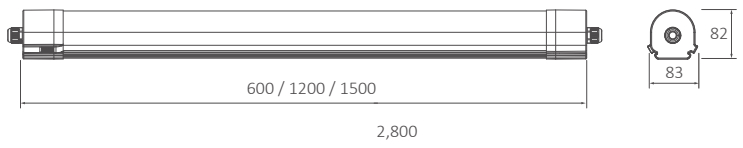

DIMENSION (mm)
BEAM ANGLE
120°(FF)
PRODUCT DATASHEET
| Model NO. | Watt | lm | lm/W | Color | Beam Angle | Function | Length(mm) |
|---|---|---|---|---|---|---|---|
| T072S-20 | 20-17-14-12W by switch | 2,800 | 140 | Single Color Tri-Color |
120°(FF) | ON/OFF DALI2 |
600 |
| T074S-40 | 40-34-28-22W by switch | 6,000 | 150 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1200 |
| T075S-45 | 45-38-32-26W by switch | 7,000 | 160 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1500 |
| T075S-60 | 60-50-42-32W by switch | 9,000 | 150 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1500 |
| Model NO. | Watt | lm | lm/W | Color | Beam Angle | Function | Length(mm) |
|---|---|---|---|---|---|---|---|
| T072D-20 | 20-17-14-12W by switch | 2,600 | 125 | Single Color Tri-Color |
120°(FF) | ON/OFF DALI2 |
600 |
| T074D-40 | 40-34-28-22W by switch | 5,500 | 135 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1200 |
| T075D-45 | 45-38-32-26W by switch | 6,300 | 140 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1500 |
| T075D-60 | 60-50-42-32W by switch | 8,100 | 135 | Single Color Tri-Color |
120°(FF) | ON/OFF EM 3H Self PWM sensor DALI2 |
1500 |
